RCKM-30S Small Pile Driver Machine Hydraulic Mini Piling Rig Price For Sale
Product Description
RCKM-30S Small Pile Driver is used for solar pile driver or Road Side Fence or mini pile drilling .it can be solar screw pile drilling ,auger pipe drilling or DTH drilling.
The small pile driver is designed to work with solar piling, which is a professional machine in solar installations. The small pile driver is compact size design and light weight ,it is easy to transport and move, and it is full hydraulic system, also very easy to operate, with very high drilling efficiency
Product Specifications
| Model | RCKM-30S |
| Rig weight | 1.2t |
| Dimensions (L×W×H) | 2300*1300*2200mm |
| Engine power | 25HP |
| Rotary head torque | 3500N.m |
| Hydraulic oil pump | Single pump |
| hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Way of walking | Crawler gearbox walking |
| Walking speed | 7-15km/h |
| cooling system | Hydraulic cooler |
| Carriage travel distance | 2.8m |
| Piling height | 1-3m |
| Borehole diameter | 50-300mm |
| Borehole depth | 1-30m |
| Air consumption | 6m3/min |
| Adapt to rock types | Medium hard rock ,F=8-12 |
| Climbing ability | 35° |
| Hydraulic legs | 4 |
Product Features
Powerful function
Drilling depth up to 30m, drilling diameter 50-300mm.
Accurate drilling positioning
The drilling angle is adjustable from 45° to 90°, easy to operate, and the drilling efficiency is fast.
New hydraulic technology
Advanced hydraulic system, excellent hydraulic components, long service life of hydraulic system.
Packaging & Shipping
1,this hydraulic solar pile drilling rig is standard exporting package
2,it can be shipped by one 20" container
3,we can ship the drilling machine in 10-15 working days after get the purchasing order

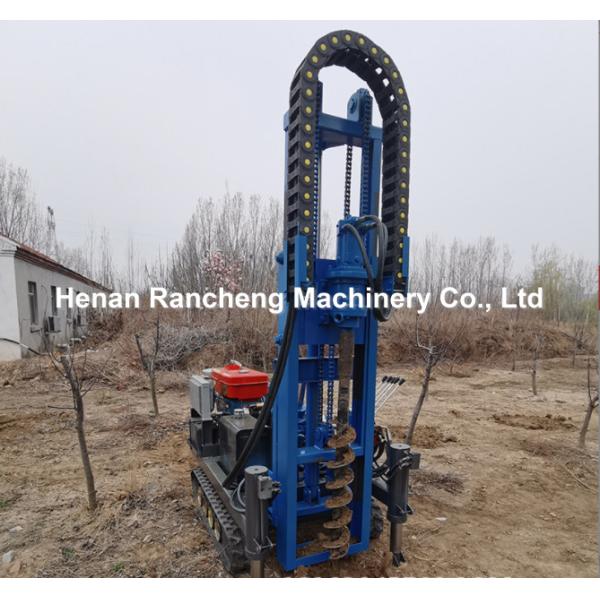

Product Image
